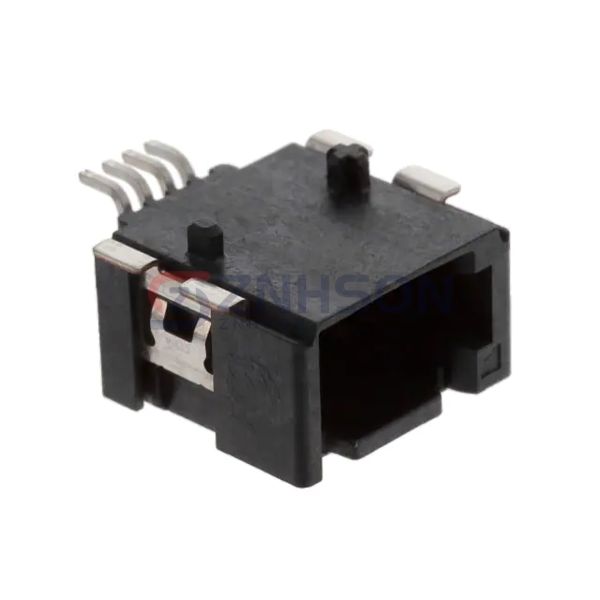

10142634-104KLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN MICROSPACE HDR-ASSY STG S
$1.50
Available to order
Reference Price (USD)
1+
$1.50000
500+
$1.485
1000+
$1.47
1500+
$1.455
2000+
$1.44
2500+
$1.425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 10142634-104KLF rectangular connector header from Amphenol ICC (FCI). These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 10142634-104KLF meets the highest industry standards. Amphenol ICC (FCI) provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: 0.096" (2.43mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.297" (7.55mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Solder Retention
- Operating Temperature: -40°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 4A
- Voltage Rating: 48V
