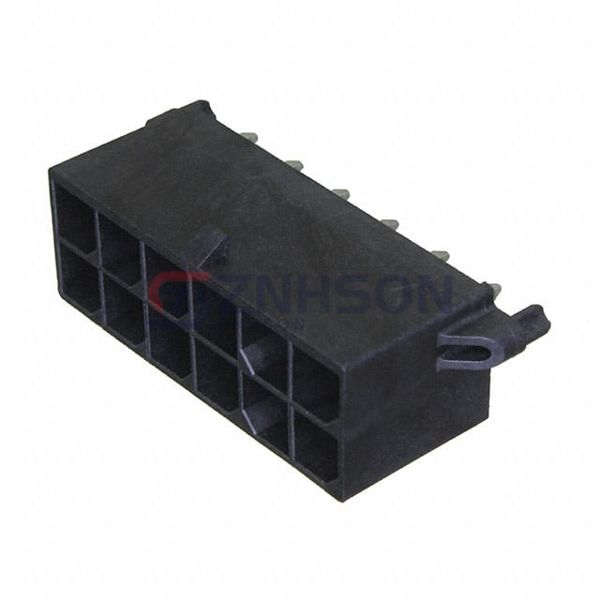

10142708-12200LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 12POS 5.7MM
$2.49
Available to order
Reference Price (USD)
1+
$2.63000
10+
$2.39000
25+
$2.24400
50+
$2.14660
117+
$2.04897
351+
$1.85382
585+
$1.70747
1,053+
$1.46355
2,574+
$1.36598
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10142708-12200LF male pin header by Amphenol ICC (FCI) provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.224" (5.70mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.224" (5.70mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.583" (14.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 600VAC/DC
