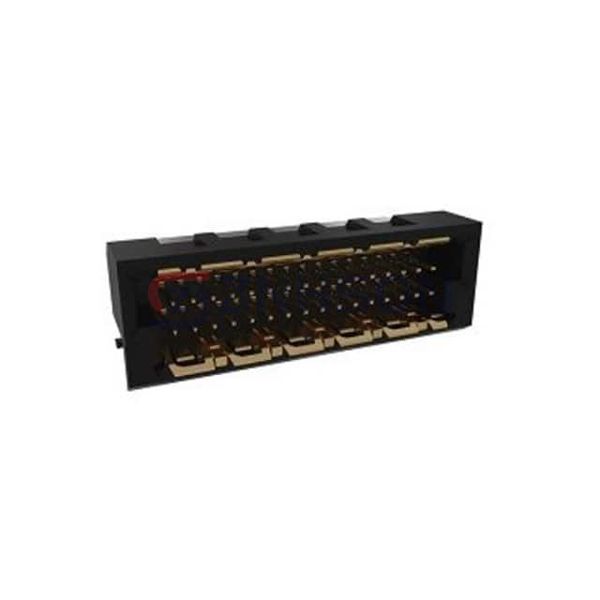

10150096-3200RLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN MICROSPEED 1.00MM BOARD-
$6.35
Available to order
Reference Price (USD)
1+
$6.35000
500+
$6.2865
1000+
$6.223
1500+
$6.1595
2000+
$6.096
2500+
$6.0325
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10150096-3200RLF by Amphenol ICC (FCI) is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 10150096-3200RLF supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol ICC (FCI) ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.059" (1.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.114" (2.90mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.266" (6.76mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 100VAC
