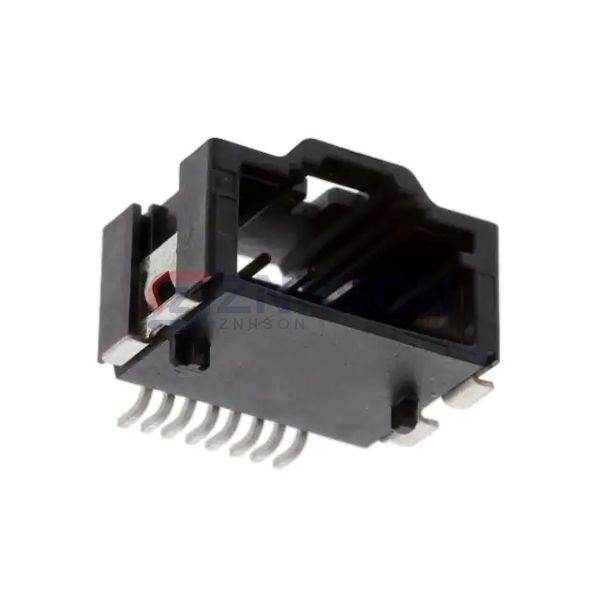

10155500-A108KLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN MICROSPACEXS,1.27MM CRIM
$2.30
Available to order
Reference Price (USD)
1+
$2.30000
500+
$2.277
1000+
$2.254
1500+
$2.231
2000+
$2.208
2500+
$2.185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10155500-A108KLF male pin header by Amphenol ICC (FCI) offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Amphenol ICC (FCI) for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.096" (2.43mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.382" (9.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Solder Retention
- Operating Temperature: -40°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 4A
- Voltage Rating: 48V
