10159560-A00221RLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

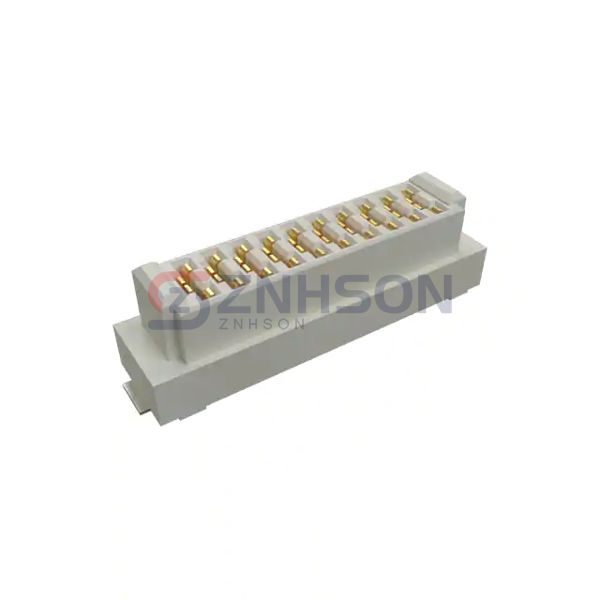

POWERSTAK VERTICAL HEADER 10POS
$3.48
Available to order
Reference Price (USD)
1+
$3.48000
500+
$3.4452
1000+
$3.4104
1500+
$3.3756
2000+
$3.3408
2500+
$3.306
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 10159560-A00221RLF rectangular connector header from Amphenol ICC (FCI). These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 10159560-A00221RLF meets the highest industry standards. Amphenol ICC (FCI) provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10 (Power)
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.224" (5.69mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 20A per Contact
- Voltage Rating: 100VDC
