102321-1

TE Connectivity AMP Connectors

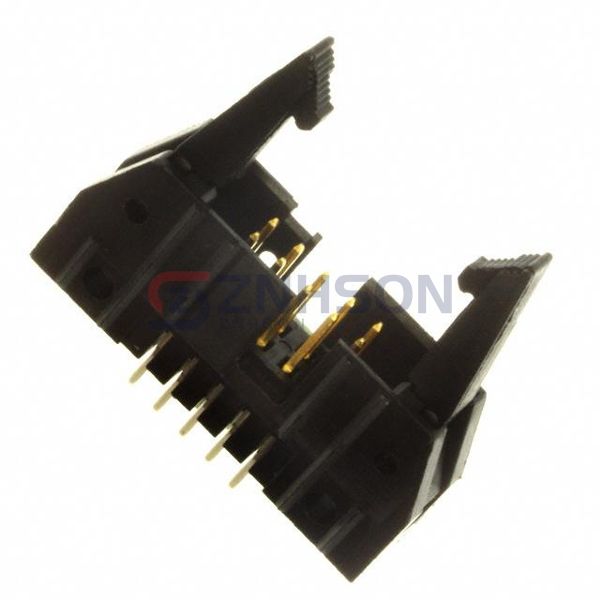

102321-1 Preview
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
$3.68
Available to order
Reference Price (USD)
1+
$2.78000
10+
$2.67300
100+
$2.26180
500+
$1.95336
1,000+
$1.69634
5,000+
$1.54212
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 10
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks, Long
  • Contact Length - Mating: 0.240" (6.10mm)
  • Contact Length - Post: 0.155" (3.94mm)
  • Overall Contact Length: 0.684" (17.37mm)
  • Insulation Height: 0.549" (13.94mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold or Gold-Palladium
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish - Post: Tin-Lead
  • Contact Material: -
  • Insulation Material: -
  • Features: Keying Slot, Mounting Flange
  • Operating Temperature: -65°C ~ 105°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 1A per Contact
  • Voltage Rating: 250VAC
