102557-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

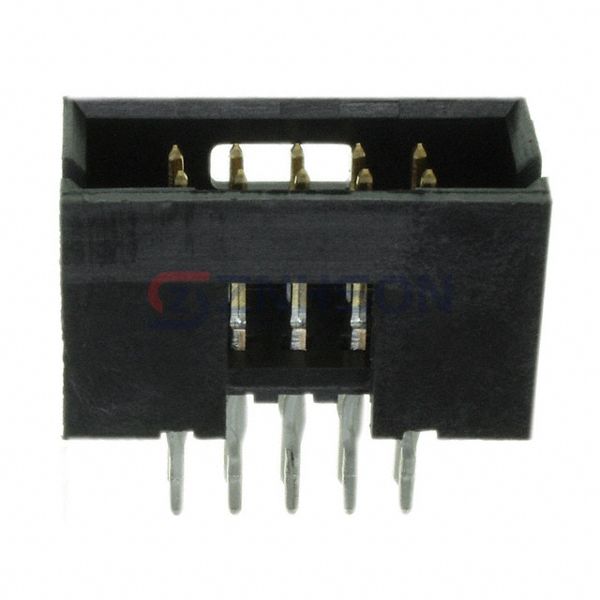

CONN HEADER VERT 10POS 2.54MM
$7.56
Available to order
Reference Price (USD)
1+
$4.11000
10+
$3.94400
150+
$3.28700
600+
$2.79395
1,050+
$2.38308
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 102557-9 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 102557-9 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.250" (6.35mm)
- Overall Contact Length: 0.660" (16.76mm)
- Insulation Height: 0.440" (11.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
