104130-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 16POS 2.54MM
$7.61
Available to order
Reference Price (USD)
1+
$6.16000
88+
$5.24784
176+
$5.01960
528+
$4.33513
1,056+
$3.76472
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 104130-3 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.200" (5.08mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: -
- Insulation Height: 0.360" (9.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
Related Products
Mill-Max Manufacturing Corp.
850-10-032-10-001000
Samtec Inc.
TSM-103-01-L-DV-P-TR
CNC Tech
52025-12-0100-01
Samtec Inc.
FTE-140-01-G-DH-K
Samtec Inc.
TSW-104-07-T-T
Amphenol ICC (FCI)
20021511-00010T1LF
Samtec Inc.
TFM-115-02-F-DH
Samtec Inc.
FTSH-109-05-F-DV-A

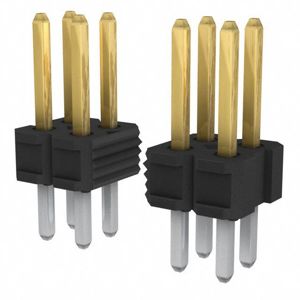

Amphenol ICC (FCI)
