1053091207
Molex
Molex

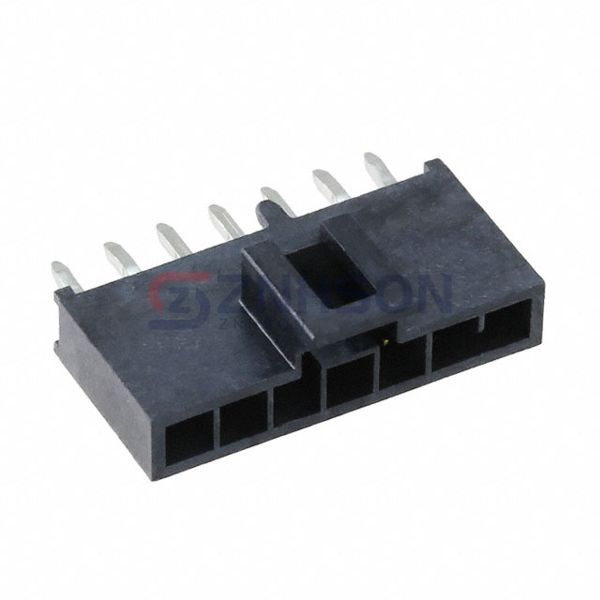

CONN HEADER VERT 7POS 2.5MM
$2.20
Available to order
Reference Price (USD)
1+
$1.73000
90+
$1.40933
180+
$1.34528
540+
$1.12106
1,080+
$0.96090
5,040+
$0.85200
10,080+
$0.83278
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1053091207 rectangular connector header from Molex. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1053091207 meets the highest industry standards. Molex provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Samtec Inc.
HTSW-116-08-LM-S-RA
TE Connectivity AMP Connectors
1-770743-1
Samtec Inc.
IPL1-104-01-F-D-RA-K
Samtec Inc.
TSW-102-05-S-D
Oupiin
2112-2X30G00SB
TE Connectivity AMP Connectors
5103309-5
Amphenol ICC (FCI)
68021-412HLF
Harwin Inc.

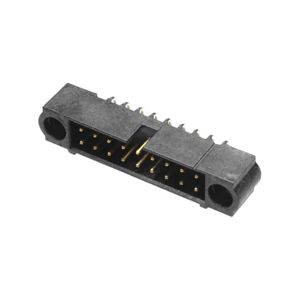

M80-5500442
