1053092107
Molex
Molex
CONN HEADER VERT 7POS 2.5MM
$2.02
Available to order
Reference Price (USD)
1+
$1.58000
90+
$1.29100
180+
$1.23228
540+
$1.02691
1,080+
$0.88020
5,040+
$0.78044
10,080+
$0.76284
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

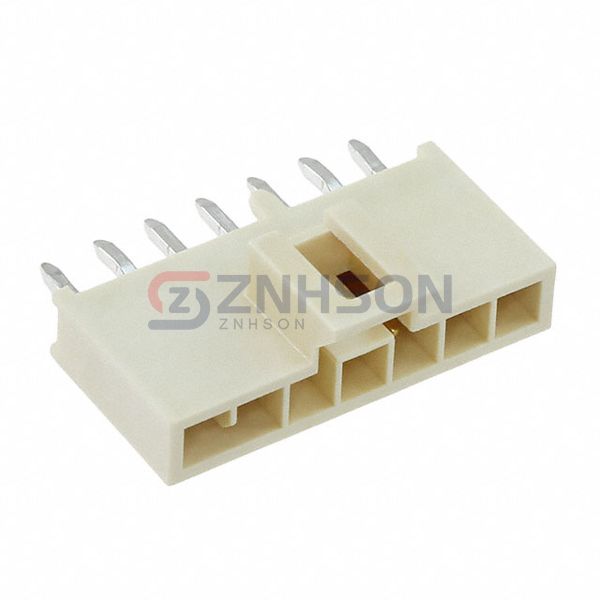

The 1053092107 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Samtec Inc.
TSM-108-01-LM-SV-LC
Samtec Inc.
TSW-138-14-L-D
Samtec Inc.
TSM-104-02-L-SH-P-TR
Samtec Inc.
HTSW-107-08-G-S-RA
Mill-Max Manufacturing Corp.
350-10-163-00-001000
Samtec Inc.
TSW-108-23-S-D
TE Connectivity AMP Connectors
104797-5
TE Connectivity AMP Connectors
4-103747-0-25
TE Connectivity AMP Connectors

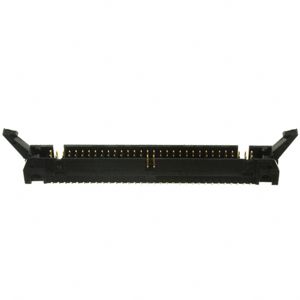

1-5499206-2
