1053102204
Molex
Molex

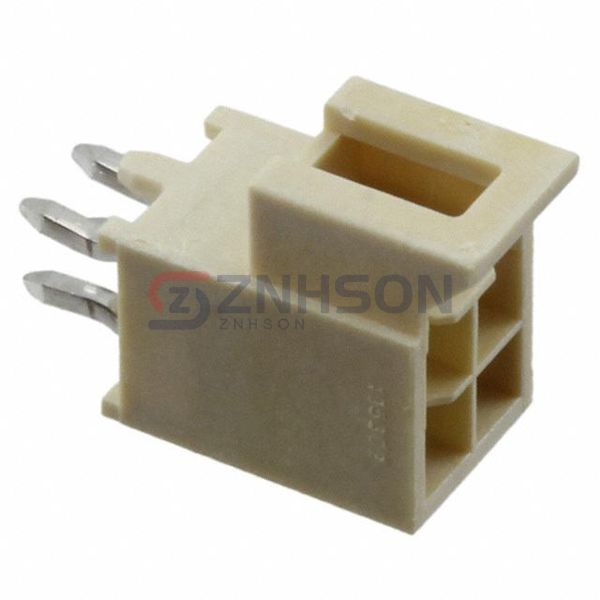

CONN HEADER VERT 4POS 2.5MM
$1.86
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32800
300+
$1.02980
600+
$0.94850
1,200+
$0.81300
5,100+
$0.72086
10,200+
$0.70460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 1053102204 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 1053102204 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.098" (2.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Molex
38-00-7094
Samtec Inc.
TFC-107-01-F-D-RA
Preci-Dip
800-80-047-65-001101
Samtec Inc.
FTS-128-01-F-DV
Samtec Inc.
TSM-107-02-T-DH-A
Molex
0313872002
Samtec Inc.
TMM-122-06-T-S-SM
Samtec Inc.
TSM-150-02-T-DV
Samtec Inc.

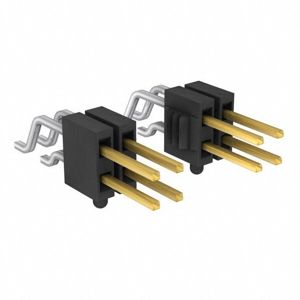

FTSH-125-04-LM-DH-A-C
