1053111204
Molex
Molex
CONN HEADER VERT 4POS 2.5MM
$1.60
Available to order
Reference Price (USD)
1+
$1.44000
10+
$1.27800
126+
$1.11548
504+
$0.92960
1,008+
$0.83664
5,040+
$0.74368
10,080+
$0.71114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1053111204 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1053111204 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Harwin Inc.
M20-9730846
Samtec Inc.
HTSW-110-14-TM-S
Amphenol Sine Systems Corp
ATM15-12PA-BM01
Samtec Inc.
TST-107-01-G-D-06
Preci-Dip
890-18-025-10-002101
Sullins Connector Solutions
PEC36SABN
Molex
0877604016
Samtec Inc.

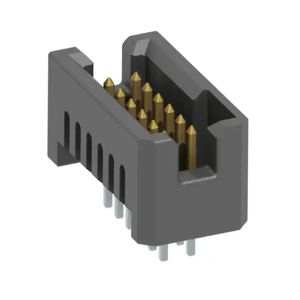

TFM-106-01-S-D
Preci-Dip

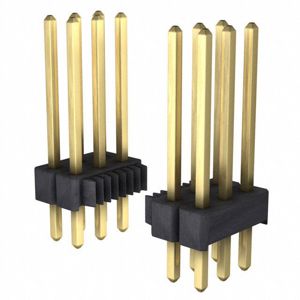

894-70-093-10-004101
