1054311102
Molex
Molex

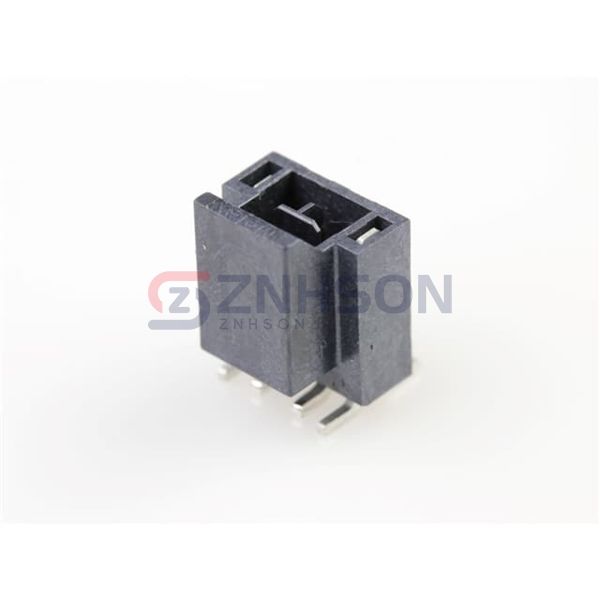

CONN HEADER SMD 2POS 2.5MM
$2.37
Available to order
Reference Price (USD)
1+
$2.37000
500+
$2.3463
1000+
$2.3226
1500+
$2.2989
2000+
$2.2752
2500+
$2.2515
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1054311102 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.382" (9.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place, Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 4A
- Voltage Rating: 250VAC
