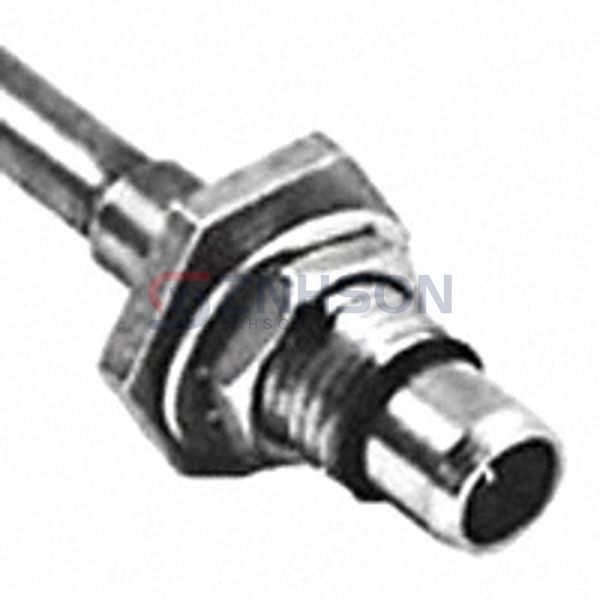

1059404-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN MINI OSP PLUG STR 50 OHM
$22.95
Available to order
Reference Price (USD)
1+
$20.43000
10+
$18.44100
25+
$17.66840
50+
$16.56420
100+
$16.01200
250+
$15.12864
500+
$14.68692
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1059404-1 from TE Connectivity AMP Connectors represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 1059404-1 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Obsolete
- Connector Style: OSP, Mini
- Connector Type: Plug, Male Pin
- Contact Termination: -
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: RG-405 (.085" Semi Rigid)
- Fastening Type: Snap-On
- Frequency - Max: 22 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
