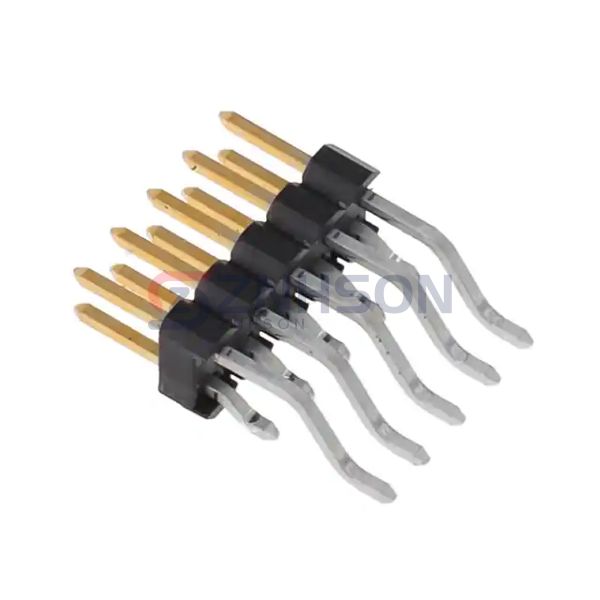

1156939
Phoenix Contact
Phoenix Contact
SMD MALE STRIP, NOMINAL CURRENT
$1.05
Available to order
Reference Price (USD)
1+
$1.05000
500+
$1.0395
1000+
$1.029
1500+
$1.0185
2000+
$1.008
2500+
$0.9975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 1156939 rectangular connector header from Phoenix Contact for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Phoenix Contact is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.200" (5.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
800-V3-010-6B-002101
Samtec Inc.
TSW-114-08-S-S-RA
Samtec Inc.
TMM-108-01-F-D-RE
Preci-Dip
800-V3-030-22-002101
Samtec Inc.
FWS-06-01-T-S
Samtec Inc.
FTSH-118-01-L-D-RA
Samtec Inc.

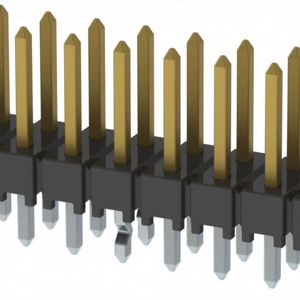

HTSW-116-07-L-D-LL
Molex

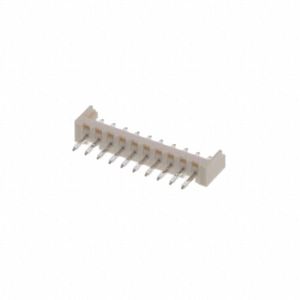

0532531070
