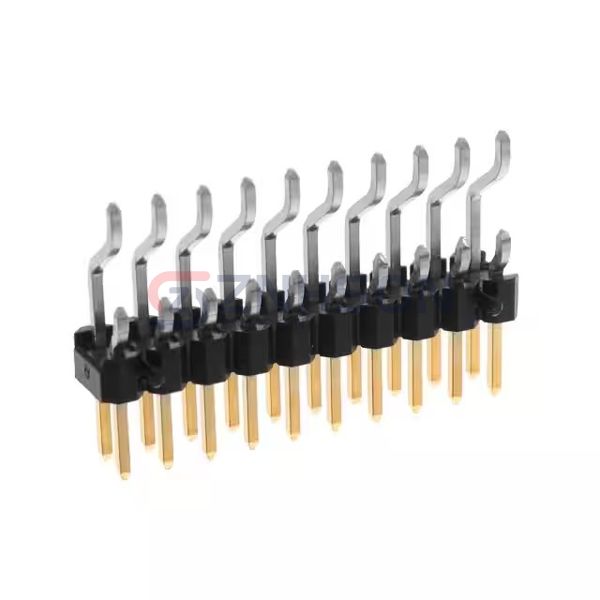

1156942
Phoenix Contact
Phoenix Contact
SMD MALE STRIP, NOMINAL CURRENT
$1.96
Available to order
Reference Price (USD)
1+
$1.96000
500+
$1.9404
1000+
$1.9208
1500+
$1.9012
2000+
$1.8816
2500+
$1.862
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1156942 by Phoenix Contact is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1156942 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Phoenix Contact ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.197" (5.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.200" (5.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
