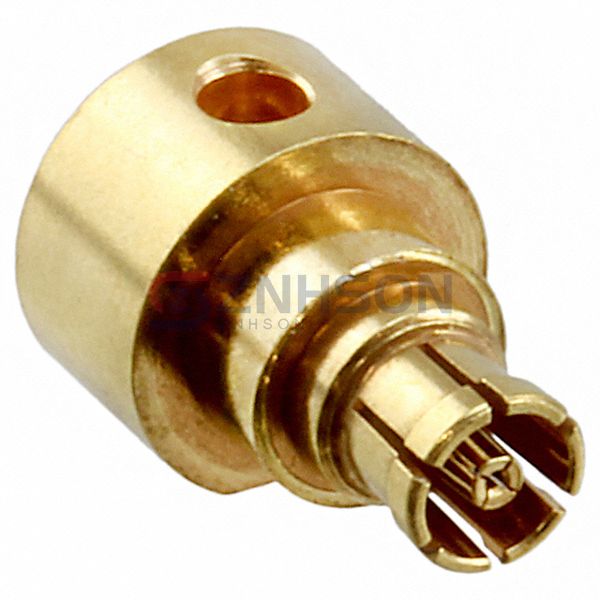

125-0692-101
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson
CONN SMPM JACK R/A 50OHM
$17.87
Available to order
Reference Price (USD)
1+
$15.34000
10+
$13.41900
50+
$12.65220
100+
$11.88540
250+
$11.50200
500+
$10.73520
1,000+
$9.58500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 125-0692-101 from Cinch Connectivity Solutions Johnson represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 125-0692-101 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMPM
- Connector Type: Jack, Female Socket
- Contact Termination: -
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: 0.047" Semi Rigid
- Fastening Type: Snap-On
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
