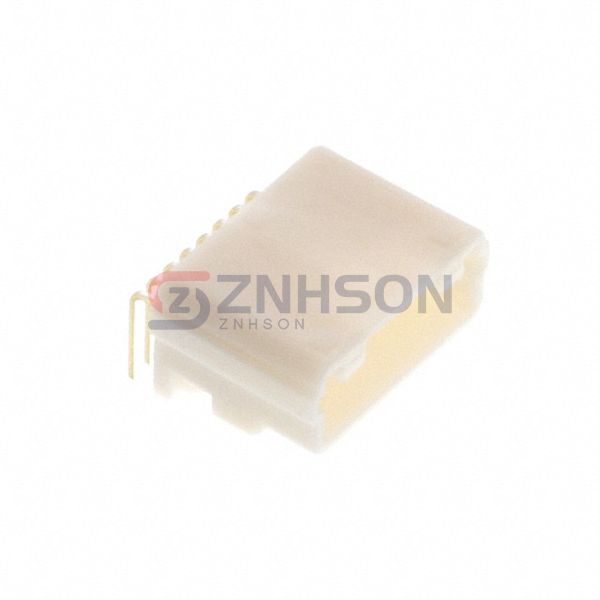

1376366-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 8POS 2.2MM
$2.74
Available to order
Reference Price (USD)
1+
$2.20000
20+
$1.99400
100+
$1.70910
500+
$1.42422
1,000+
$1.22076
5,000+
$1.08241
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1376366-2 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1376366-2 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.217" (5.50mm)
- Contact Length - Post: 0.157" (4.00mm)
- Overall Contact Length: -
- Insulation Height: 0.492" (12.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Mounting Brackets
- Operating Temperature: -30°C ~ 100°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-120-01-L-DV-A-P
Samtec Inc.
BBS-129-T-B
Samtec Inc.
TSW-106-14-G-S
Samtec Inc.
TSM-110-02-S-SV-P-TR
Sullins Connector Solutions
GBC05SFBN-M30
Samtec Inc.
TMM-104-04-G-D-SM-P-TR

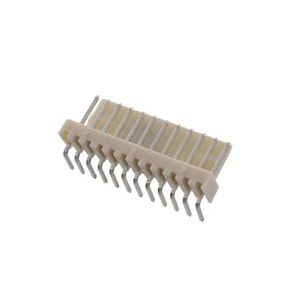

Adam Tech
LHA-12-TRB

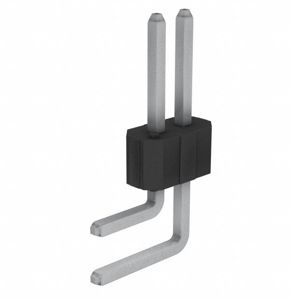

Amphenol ICC (FCI)
