138-4696-011
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

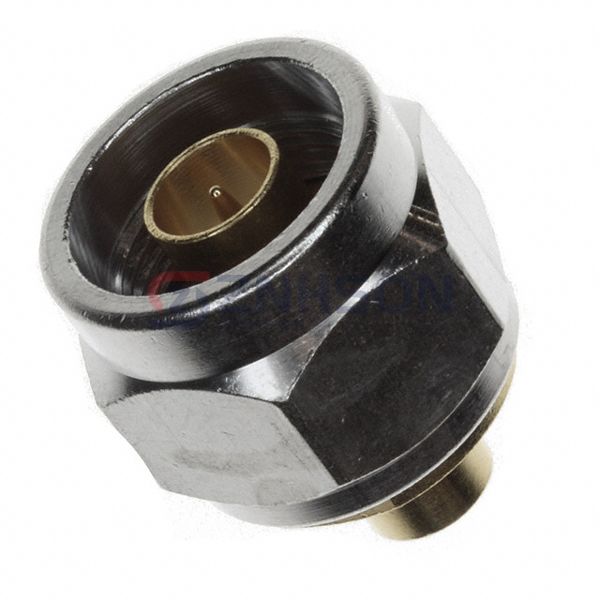

CONN N PLUG STR 50 OHM PUSH
$15.79
Available to order
Reference Price (USD)
250+
$15.45360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 138-4696-011 from Cinch Connectivity Solutions Johnson represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 138-4696-011 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: N Type
- Connector Type: Plug, Male Pin
- Contact Termination: Push On
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: RG-401 (.250" Semi Rigid)
- Fastening Type: Threaded
- Frequency - Max: 18 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold, Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
