140-509-415-100
EDAC Inc.
EDAC Inc.
2.0MM PITCH CONNECTOR WITH 9 P.C
$0.18
Available to order
Reference Price (USD)
1+
$0.17675
500+
$0.1749825
1000+
$0.173215
1500+
$0.1714475
2000+
$0.16968
2500+
$0.1679125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 140-509-415-100 by EDAC Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 140-509-415-100 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. EDAC Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.185" (4.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100VAC/DC
Related Products
TE Connectivity AMP Connectors
292253-7
Preci-Dip
850-80-002-40-251101
Sullins Connector Solutions
PBC27SFEN
Samtec Inc.
TSM-102-04-L-SH-TR
Preci-Dip
800-80-014-40-001101
TE Connectivity AMP Connectors

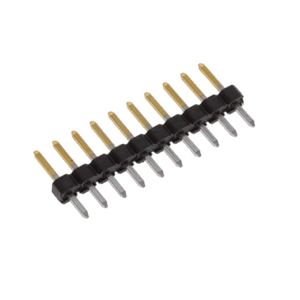

1-2355184-0
Hirose Electric Co Ltd

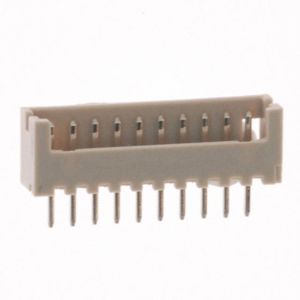

DF13-10P-1.25DSA
Amphenol ICC (FCI)

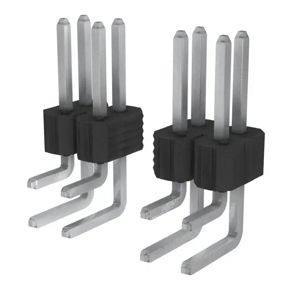

68020-440
Harwin Inc.

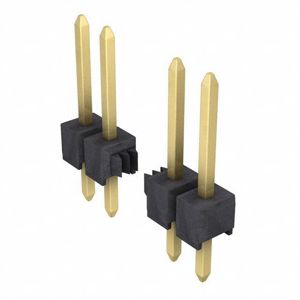

M20-9731145
