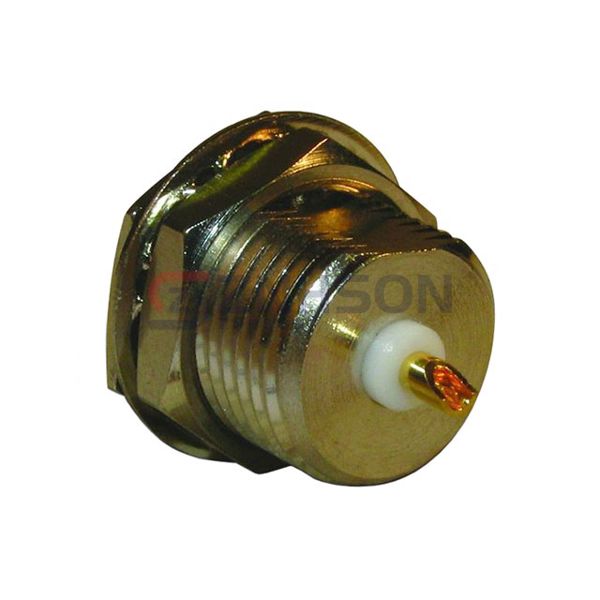

142156
Amphenol RF
Amphenol RF
CONN SMB RCPT STR 50 OHM SOLDER
$0.00
Available to order
Reference Price (USD)
100+
$5.45600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 142156 from Amphenol RF sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 142156 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Receptacle, Male Pin
- Contact Termination: Solder Cup
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Bulkhead - Rear Side Nut
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: Extended Insulation
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
