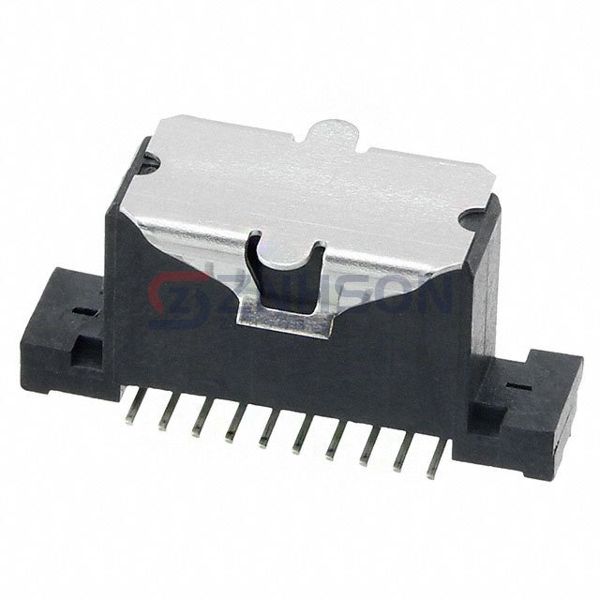

147378-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN RCPT 20POS 0.05 GOLD SMD
$4.76
Available to order
Reference Price (USD)
900+
$3.78000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 147378-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, TE Connectivity AMP Connectors provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.370" (9.40mm)
- Contact Length - Post: -
- Operating Temperature: -65°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin-Lead
- Mated Stacking Heights: 11.94mm, 13.08mm
- Ingress Protection: -
- Features: Pick and Place
- Current Rating (Amps): -
- Voltage Rating: 30VAC
