150210-2000-RB-WB
3M
3M

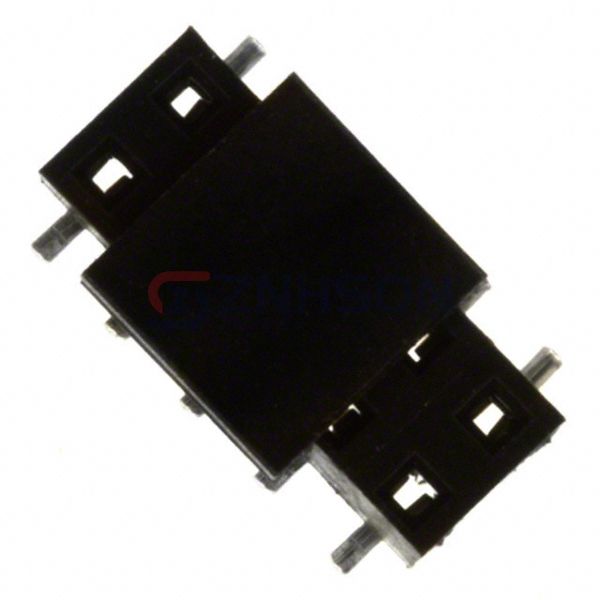

CONN RCPT 10POS 0.079 GOLD SMD
$1.49
Available to order
Reference Price (USD)
1,950+
$1.42800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 150210-2000-RB-WB 3M Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, 3M provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.183" (4.65mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Pick and Place
- Current Rating (Amps): 1A
- Voltage Rating: 500VDC
