1510481609
Molex
Molex

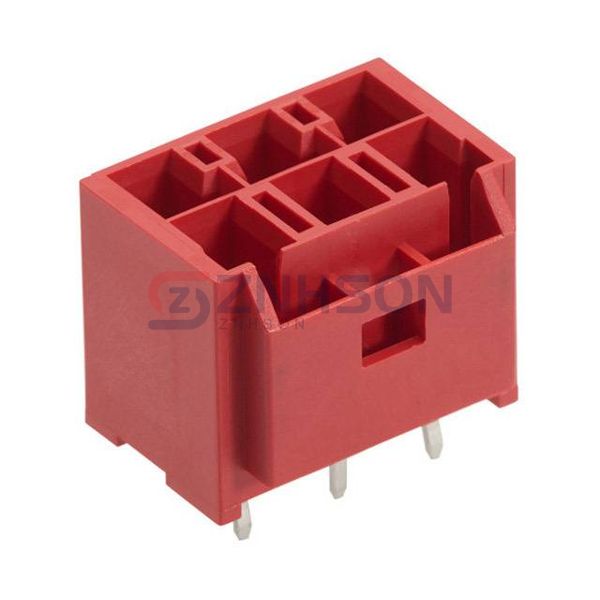

CONN HEADER VERT 6POS 6.5MM
$2.37
Available to order
Reference Price (USD)
1+
$2.23000
10+
$2.02600
450+
$1.57131
900+
$1.40590
1,350+
$1.24050
5,400+
$1.09991
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1510481609 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.256" (6.50mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.256" (6.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.348" (8.85mm)
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.630" (16.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 50.0µin (1.27µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Red
- Current Rating (Amps): -
- Voltage Rating: -
