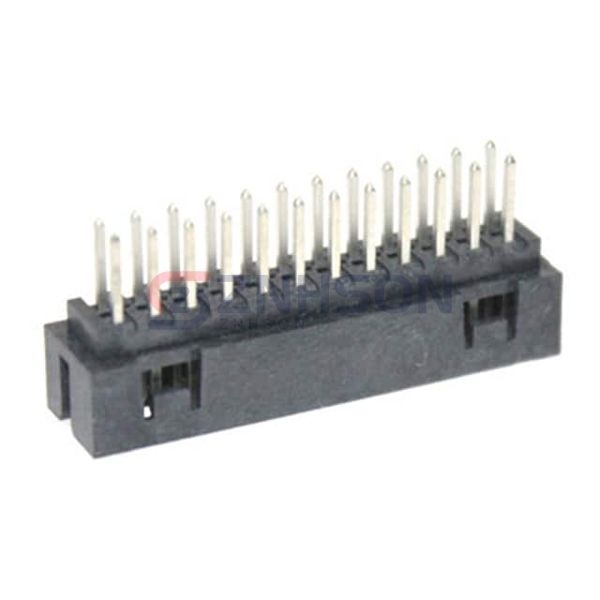

1511173038
Molex
Molex
CONN HEADER VERT 38POS 2MM
$3.19
Available to order
Reference Price (USD)
1+
$3.19000
500+
$3.1581
1000+
$3.1262
1500+
$3.0943
2000+
$3.0624
2500+
$3.0305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 1511173038 rectangular connector header from Molex for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Molex is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.102" (2.60mm)
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Glow Wire Compliant
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A per Contact
- Voltage Rating: 125VAC
