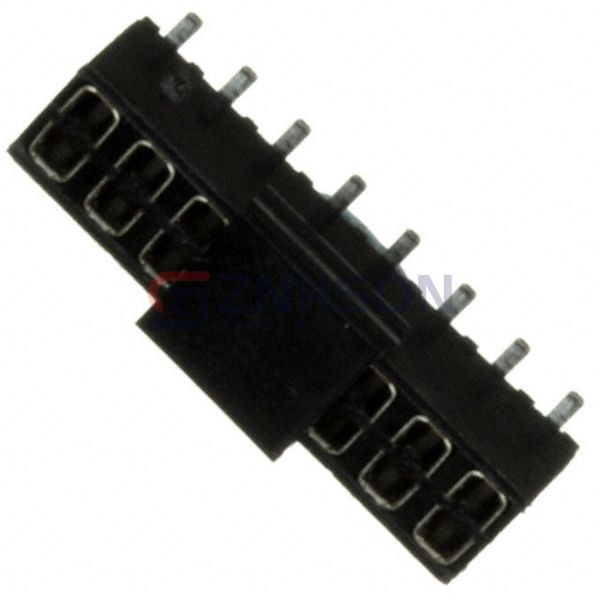

153216-2020-RB-WB
3M
3M
CONN RCPT 16POS 0.079 GOLD SMD
$2.94
Available to order
Reference Price (USD)
800+
$1.80000
1,600+
$1.65000
2,400+
$1.60000
5,600+
$1.55000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the 153216-2020-RB-WB 3M Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are engineered for high durability, efficient signal transmission, and easy installation. Perfect for applications in automotive systems, medical devices, and data centers, they ensure stable connections under varying conditions. With features like corrosion-resistant materials and secure locking mechanisms, 3M connectors are the go-to choice for professionals. Common uses include server backplanes, control panels, and handheld devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom or Top Entry
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 16
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.129" (3.28mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Guide, Pick and Place
- Current Rating (Amps): 1A
- Voltage Rating: 500VDC
