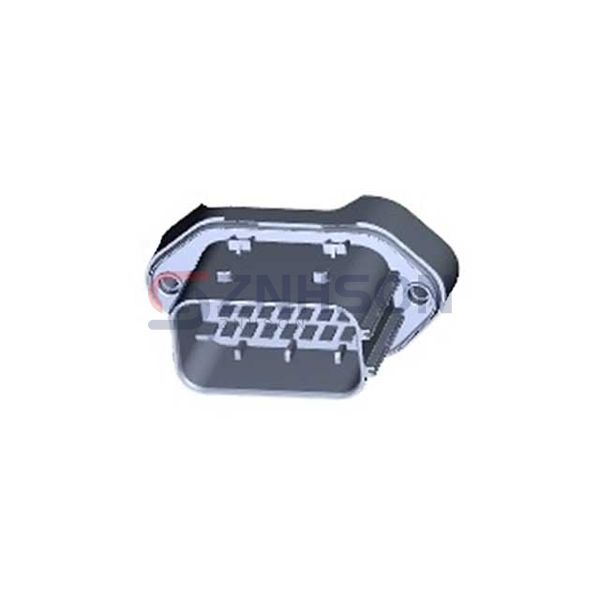

1534238-1
TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors
CONN HEADER VERT 21POS 5MM
$33.86
Available to order
Reference Price (USD)
420+
$31.42781
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1534238-1 by TE Connectivity Deutsch Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity Deutsch Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 21
- Number of Rows: 3
- Row Spacing - Mating: 0.217" (5.51mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.183" (4.65mm)
- Overall Contact Length: -
- Insulation Height: 1.738" (44.15mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Silver
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Mating Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
