15724162601000
HARTING
HARTING

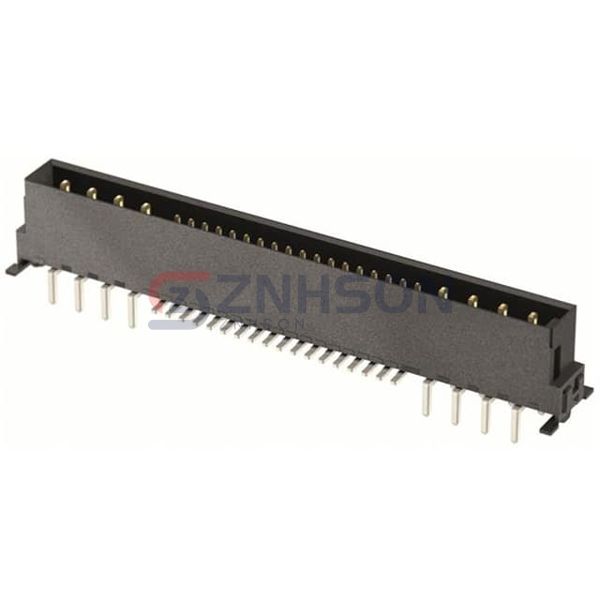

HAR-FLEX HYBRID STRAIGHT MALE, 3
$8.91
Available to order
Reference Price (USD)
1+
$8.91000
500+
$8.8209
1000+
$8.7318
1500+
$8.6427
2000+
$8.5536
2500+
$8.4645
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 15724162601000 by HARTING is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 15724162601000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. HARTING ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 20 (16 + 4 Power)
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.181" (4.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.319" (8.10mm)
- Contact Shape: Rectangular, Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 20A
- Voltage Rating: 50VAC, 120VDC
