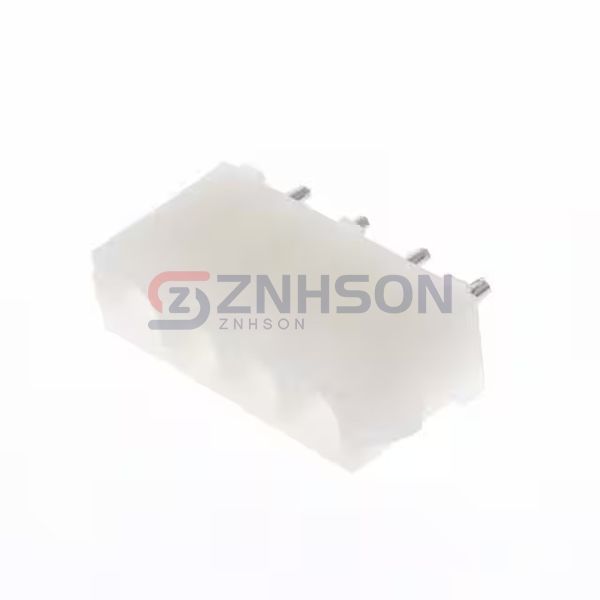

1586086-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 6.35MM
$0.68
Available to order
Reference Price (USD)
1+
$0.56000
10+
$0.52800
100+
$0.41270
500+
$0.36316
1,000+
$0.30538
5,000+
$0.27237
10,000+
$0.25586
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1586086-1 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1586086-1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.250" (6.35mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.155" (3.94mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: -
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 12A
- Voltage Rating: 600VAC
