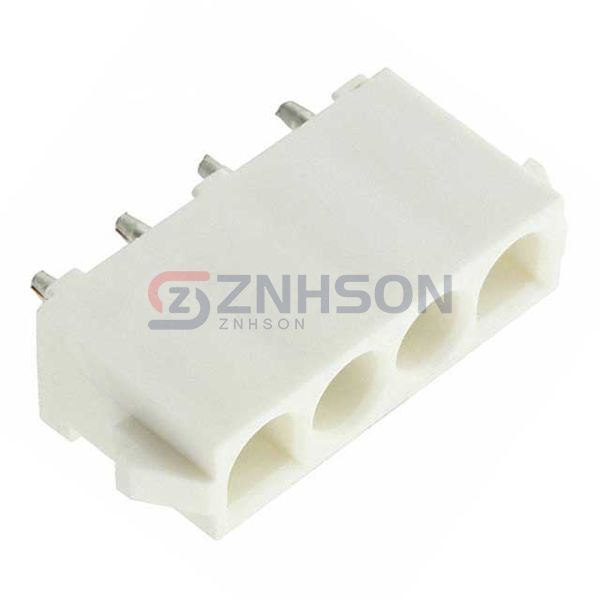

1586963-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 6.35MM
$1.09
Available to order
Reference Price (USD)
1+
$0.87000
10+
$0.76600
100+
$0.66830
500+
$0.55692
1,000+
$0.50121
5,000+
$0.44552
10,000+
$0.42603
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1586963-1 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.250" (6.35mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.155" (3.94mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): 12A
- Voltage Rating: 600VAC
Related Products
Mill-Max Manufacturing Corp.
850-90-038-10-001000
Amphenol ICC (FCI)
20021121-10012C1LF
Samtec Inc.
MMT-109-01-S-DH
Cvilux USA

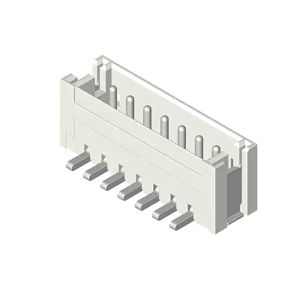

CI1504M1VR0-NH
Sullins Connector Solutions

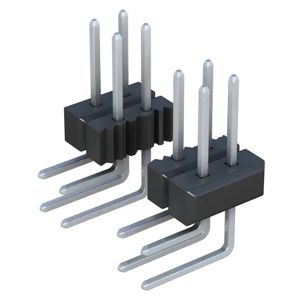

PEC12DBAN
Samtec Inc.

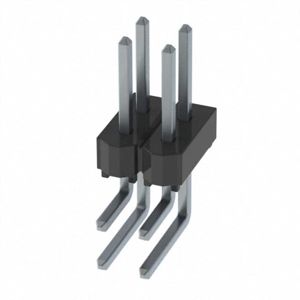

HTSW-102-08-T-D-RA
3M

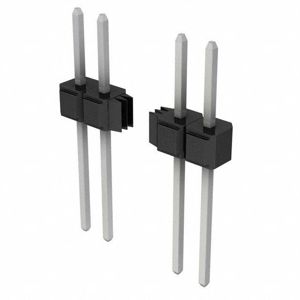

929834-03-12
