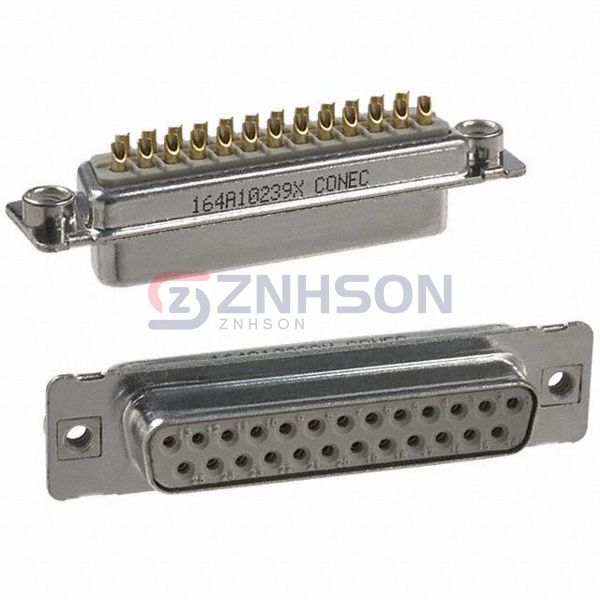

164A10239X
Conec
Conec
CONN D-SUB RCPT 25POS SLDR CUP
$15.02
Available to order
Reference Price (USD)
1+
$11.53000
10+
$10.48000
25+
$10.21800
50+
$9.43200
100+
$8.90800
250+
$8.12200
500+
$7.59800
1,000+
$6.96920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Conec presents the 164A10239X D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 164A10239X is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Cable Side (4-40)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 8.00µin (0.203µm)
- Ingress Protection: IP20
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 7.5A
- Backset Spacing: -
- Features: -
Related Products
EDAC Inc.
630-3W3-240-7T2
EDAC Inc.

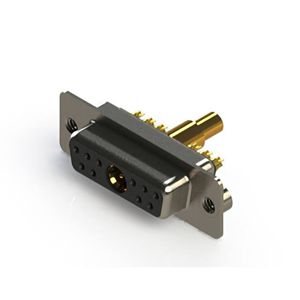

628-11W1222-7T2
EDAC Inc.

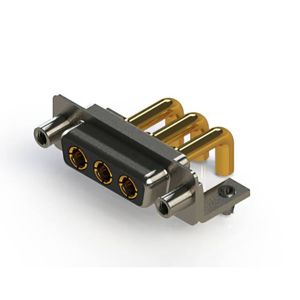

630-3W3-250-4T5
EDAC Inc.

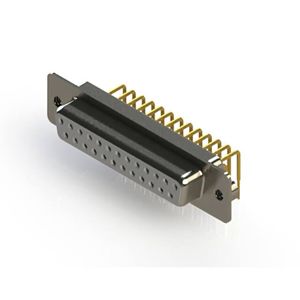

630-M25-340-WT2
PEI-Genesis

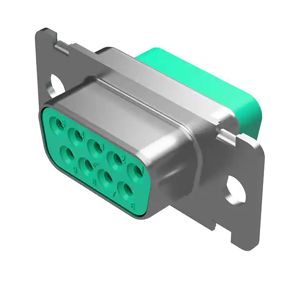

RD25S1000X/AA
EDAC Inc.

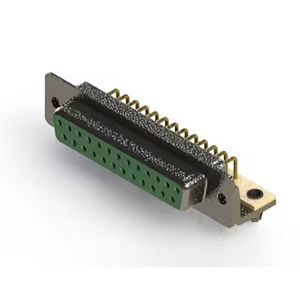

622-M25-660-GT3
TE Connectivity AMP Connectors

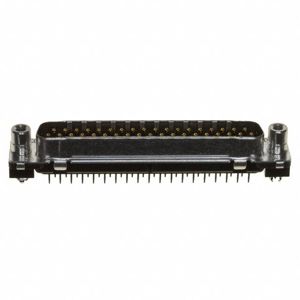

3-338312-2
EDAC Inc.

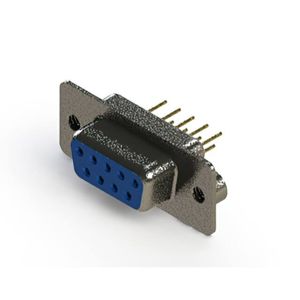

628-M09-621-LT2
EDAC Inc.

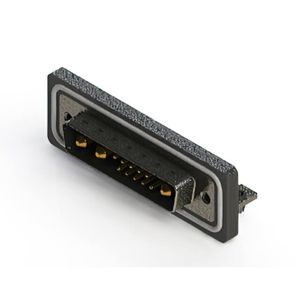

629W13W3240-2NB
