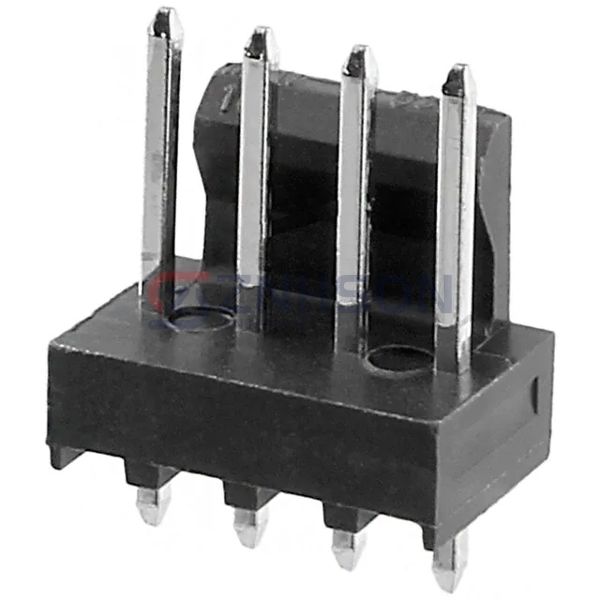

1718560004
Molex
Molex
CONN HEADER VERT 4POS 2.54MM
$0.46
Available to order
Reference Price (USD)
1+
$0.40000
10+
$0.37800
100+
$0.26480
500+
$0.22702
1,000+
$0.18918
5,000+
$0.16215
10,000+
$0.15134
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 1718560004 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 1718560004 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.293" (7.45mm)
- Contact Length - Post: 0.092" (2.34mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-110-02-T-DH-A
Amphenol ICC (FCI)
68020-130HLF
Samtec Inc.
TSM-117-02-L-DV-TR
Molex
0436501219
Samtec Inc.
TMM-106-01-L-S-SM-P-TR
TE Connectivity AMP Connectors
2-1445093-6

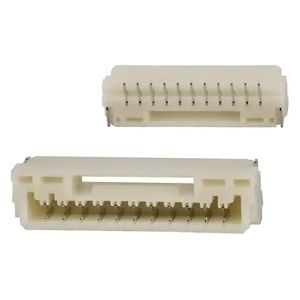

JST Sales America Inc.
