1718564003
Molex
Molex
CONN HEADER VERT 3POS 2.54MM
$1.55
Available to order
Reference Price (USD)
150+
$1.09207
300+
$0.99280
750+
$0.86871
1,050+
$0.79424
1,500+
$0.74460
3,750+
$0.71978
7,500+
$0.69496
15,000+
$0.64532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

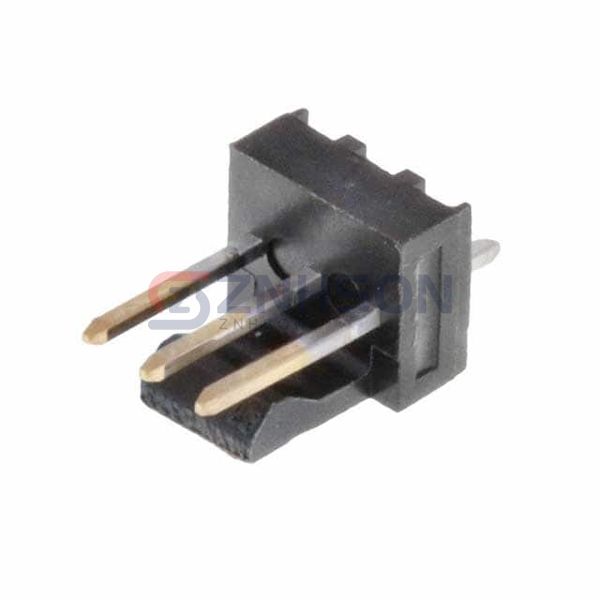

Optimize your interconnections with the 1718564003 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 1718564003 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.293" (7.45mm)
- Contact Length - Post: 0.092" (2.34mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Pick and Place
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
