1719710004
Molex
Molex

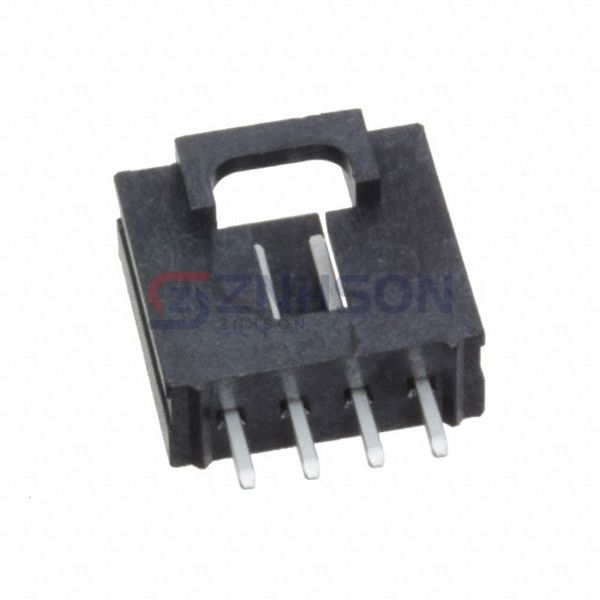

CONN HEADER VERT 4POS 2.54MM
$1.40
Available to order
Reference Price (USD)
1+
$1.10000
42+
$0.91119
126+
$0.83532
504+
$0.68345
1,008+
$0.60752
5,040+
$0.53158
10,038+
$0.50500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 1719710004 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 1719710004 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Polarizing Key
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Samtec Inc.
FTE-163-01-G-DH
Samtec Inc.
ZSS-105-05-L-D-710
Samtec Inc.
TSM-104-03-L-SV-A-P
Samtec Inc.
TSW-137-17-T-D
Samtec Inc.
TSM-117-01-S-SH-LC
Molex
0022284366
Preci-Dip
830-10-040-20-001101
Amphenol ICC (FCI)

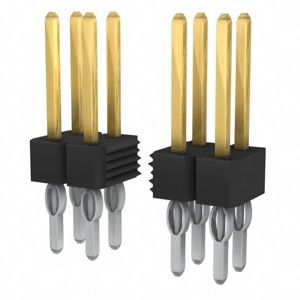

93690-101-16LF
