1720650306
Molex
Molex

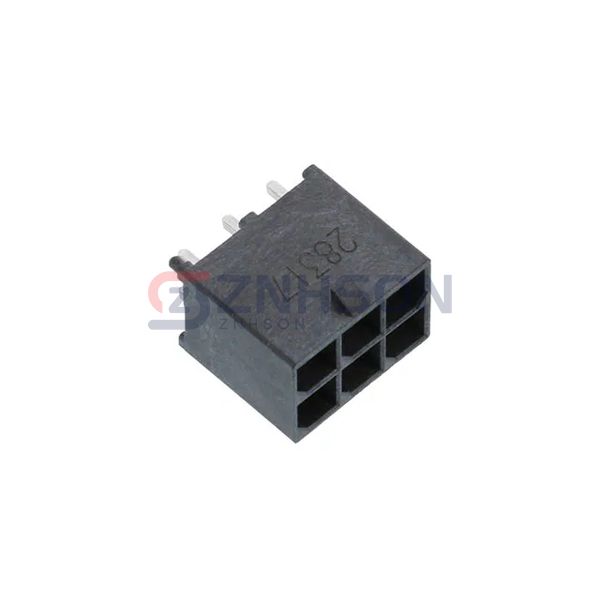

CONN HEADER VERT 6POS 5.7MM
$7.73
Available to order
Reference Price (USD)
1+
$6.07000
89+
$5.05562
178+
$4.80281
534+
$4.04448
1,068+
$3.53892
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1720650306 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 1720650306 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.224" (5.70mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.224" (5.70mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.583" (14.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
