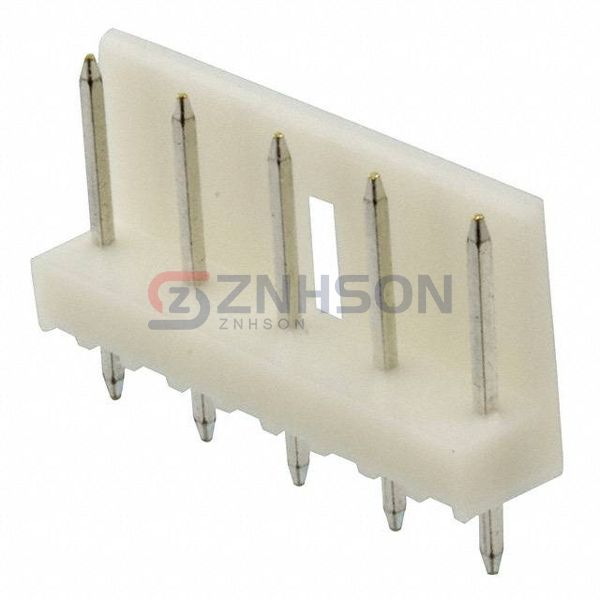

172106-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 5POS 5MM
$3.11
Available to order
Reference Price (USD)
1+
$1.66000
10+
$1.50900
100+
$1.29320
500+
$1.07770
1,000+
$0.92375
5,000+
$0.81905
10,000+
$0.80058
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 172106-5 rectangular connector header by TE Connectivity AMP Connectors. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 172106-5 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust TE Connectivity AMP Connectors for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.551" (14.00mm)
- Insulation Height: 0.409" (10.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 31.5µin (0.80µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC, 350VDC
