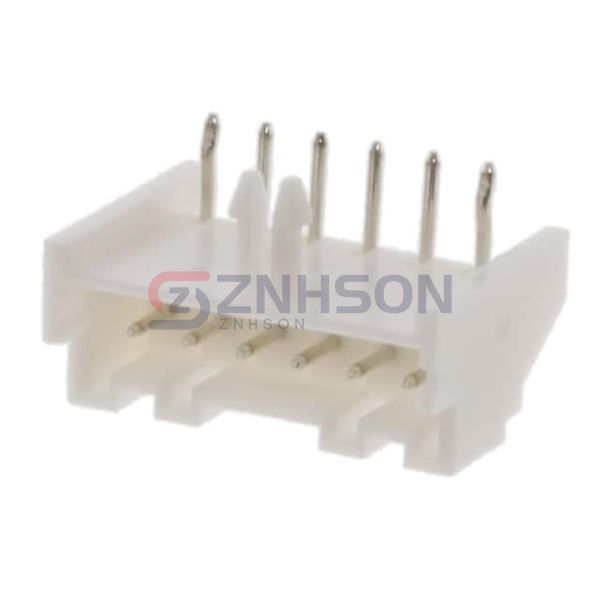

1744446-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 6POS 2.5MM
$0.72
Available to order
Reference Price (USD)
1+
$0.58000
10+
$0.55100
100+
$0.43080
500+
$0.37906
1,000+
$0.31876
5,000+
$0.28430
10,000+
$0.26707
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1744446-6 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Kinked Pin, Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.299" (7.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock, Glow Wire Compliant
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 4.2A
- Voltage Rating: 250VAC
