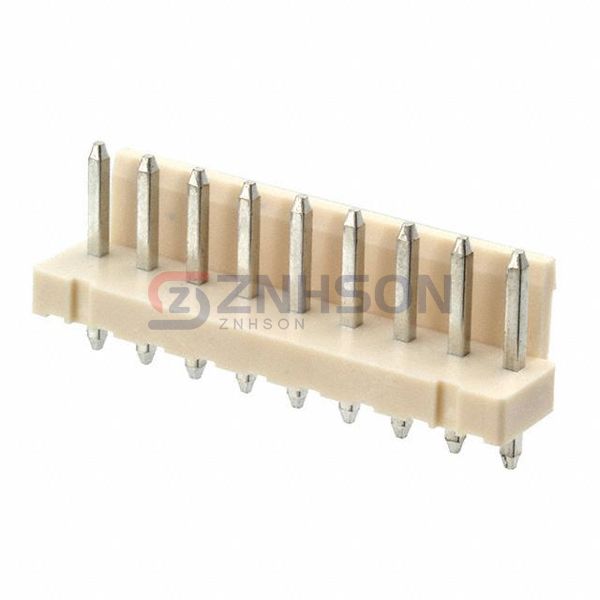

1744489-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 9POS 3.96MM
$1.46
Available to order
Reference Price (USD)
1+
$0.71000
10+
$0.67100
100+
$0.52460
500+
$0.46162
1,000+
$0.38819
5,000+
$0.34622
10,000+
$0.32524
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1744489-9 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.575" (14.60mm)
- Insulation Height: 0.127" (3.22mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Glow Wire Compliant
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 7.5A
- Voltage Rating: 250VAC
