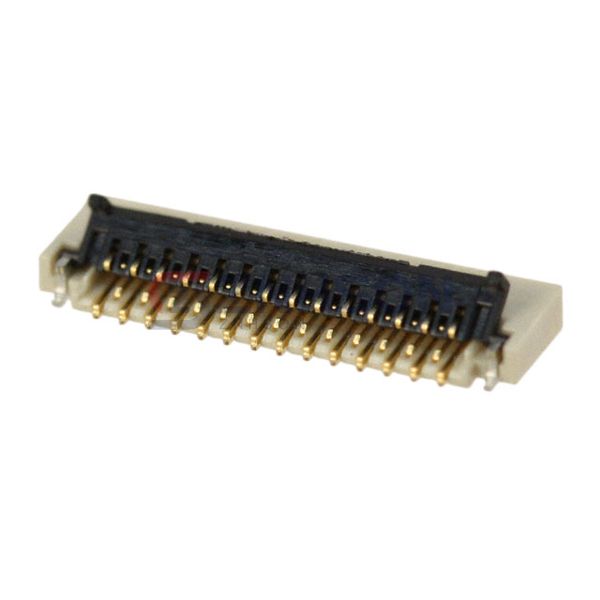

1746237-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN FPC BOTTOM 27POS 0.30MM R/A
$1.12
Available to order
Reference Price (USD)
1+
$1.12000
500+
$1.1088
1000+
$1.0976
1500+
$1.0864
2000+
$1.0752
2500+
$1.064
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 1746237-9 FFC/FPC Connectors from TE Connectivity AMP Connectors, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 1746237-9 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. TE Connectivity AMP Connectors's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 1746237-9 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 27
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.039" (1.00mm)
- Locking Feature: Flip Lock
- Cable End Type: Tapered
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Thermoplastic
- Actuator Material: Thermoplastic
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: -
Related Products
GCT
FFC2B28-40-G
Hirose Electric Co Ltd
FH34SRJ-14S-0.5SH(50)
Molex

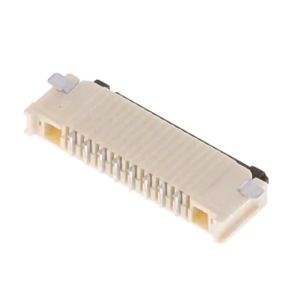

2005290080
Molex

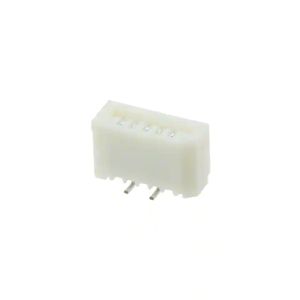

0528080570
Molex

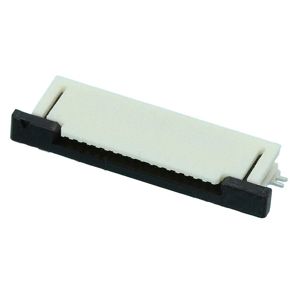

0527451797
Omron Electronics Inc-EMC Div

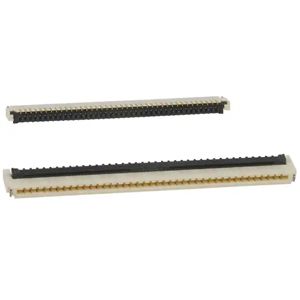

XF2U-2415-3A
Amphenol ICC (FCI)

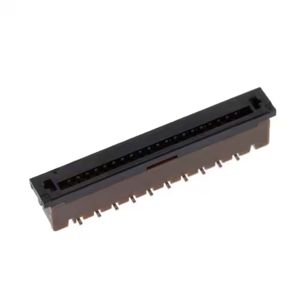

SFW20S-6STE1LF
Molex

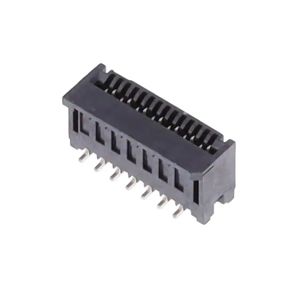

0781271410
Würth Elektronik

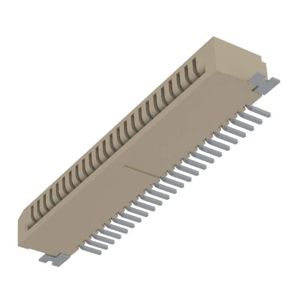

686124188622
