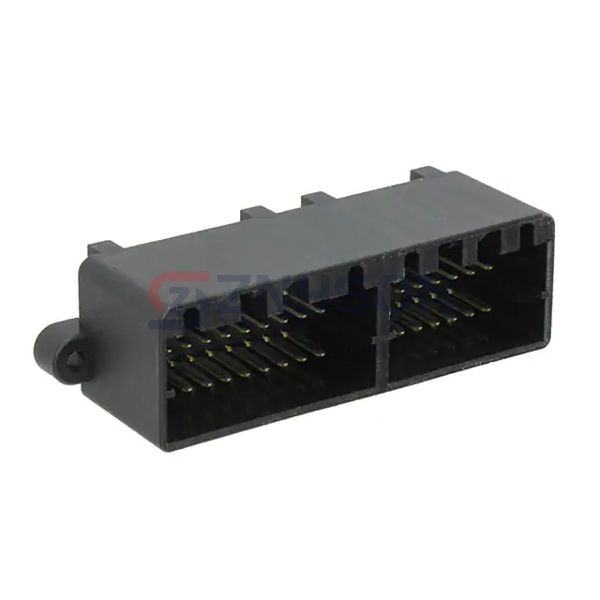

175977-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 36POS 2.5MM
$8.10
Available to order
Reference Price (USD)
1+
$4.42000
10+
$4.23900
100+
$3.53230
500+
$3.00248
1,000+
$2.56093
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 175977-2 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: -
- Contact Type: Tab
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.205" (5.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.276" (7.00mm)
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: -
- Insulation Height: 0.815" (20.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Mounting Flange
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
