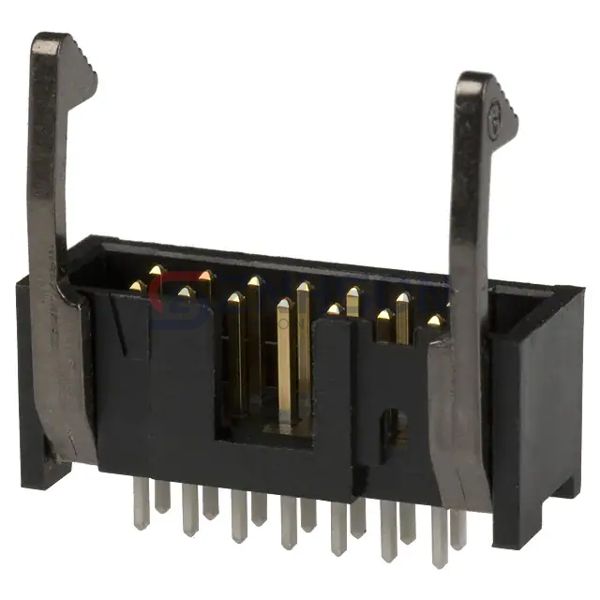

1761606-5

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER VERT 14POS 2.54MM

Datasheet:

1761606-5 Datasheet

$6.88

Available to order

Reference Price (USD)

$5.09000

20+

$4.88800

100+

$4.07350

500+

$3.46250

1,000+

$2.95332

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the 1761606-5 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Long
Contact Length - Mating: 0.237" (6.02mm)
Contact Length - Post: 0.102" (2.60mm)
Overall Contact Length: -
Insulation Height: 0.404" (10.26mm)
Contact Shape: Square
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Features: Keying Slot
Operating Temperature: -65°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1A per Contact
Voltage Rating: 250VAC

Shopping cart

1761606-5

Reference Price (USD)

Specifications

Related Products

4-103149-0-08

640388-9

68405-244HLF

852-10-096-20-002101

852-10-016-20-001000

BBL-132-G-E

1719730005

15120162601000

0022284274

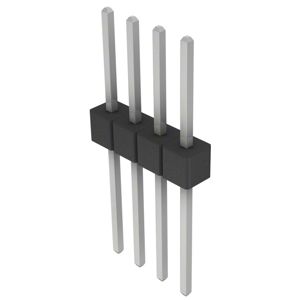

PEC04SFDN
