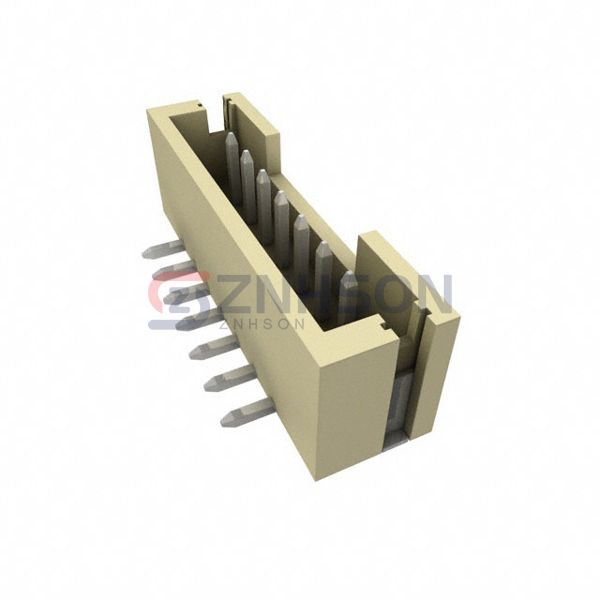

1775469-7
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 7POS 2MM
$0.92
Available to order
Reference Price (USD)
600+
$0.56260
1,200+
$0.50010
1,800+
$0.46884
3,000+
$0.45321
6,000+
$0.43758
15,000+
$0.40633
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1775469-7 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1775469-7 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: -
- Contact Length - Mating: 0.139" (3.53mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.217" (5.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Samtec Inc.
TSM-108-01-LM-SH-K-TR
Mill-Max Manufacturing Corp.
350-10-141-00-006000
Preci-Dip
890-18-025-10-004101
Harwin Inc.
M22-2510846
TE Connectivity AMP Connectors
1744057-2

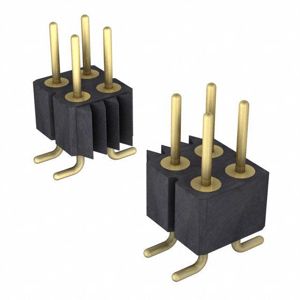

Preci-Dip
832-10-022-30-001101

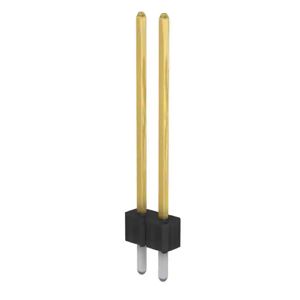

Amphenol ICC (FCI)
68466-102HLF

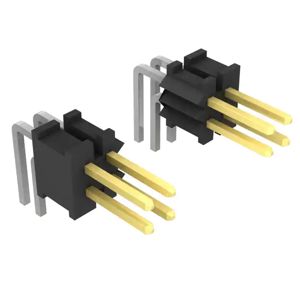

Samtec Inc.
FTSH-113-03-L-D-RA

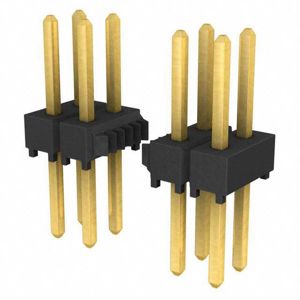

Samtec Inc.
