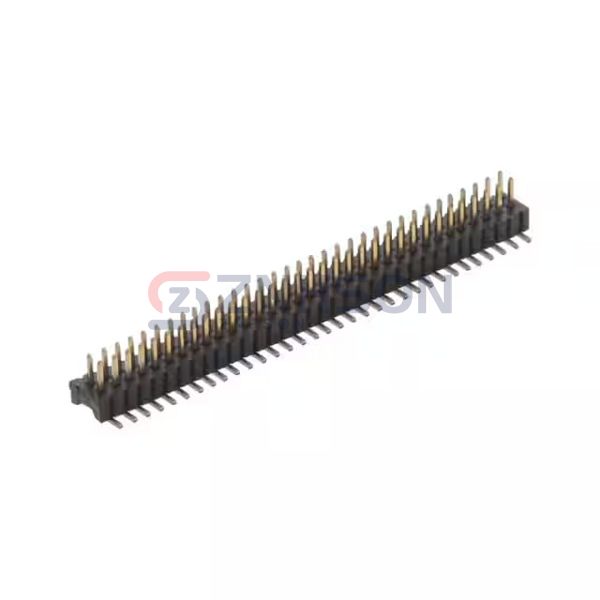

1MM-HU-D33-VS-00-F-TBP

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

SCL 1.0 HDR DRVT USP 066 SMT G1

Datasheet:

1MM-HU-D33-VS-00-F-TBP Datasheet

$5.95

Available to order

Reference Price (USD)

$5.95039

500+

$5.8908861

1000+

$5.8313822

1500+

$5.7718783

2000+

$5.7123744

2500+

$5.6528705

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 1MM-HU-D33-VS-00-F-TBP by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.

Specifications

Product Status: Active
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch - Mating: 0.039" (1.00mm)
Number of Positions: 66
Number of Rows: 2
Row Spacing - Mating: 0.039" (1.00mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.083" (2.10mm)
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.059" (1.50mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.94µin (0.100µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Features: Pick and Place
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1A
Voltage Rating: 30VAC

Shopping cart

1MM-HU-D33-VS-00-F-TBP

Reference Price (USD)

Specifications

Related Products

BBS-105-T-B

9-146274-0-03

68016-401HLF

6-103635-7

PEC22SBDN

929647-05-28-I

67997-372H

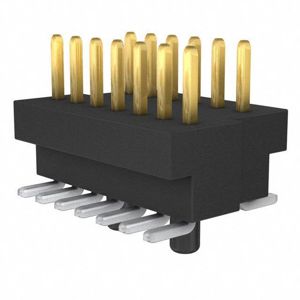

BKT-113-03-F-V-A

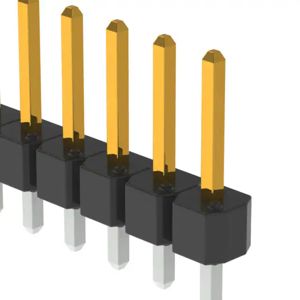

68000-112H

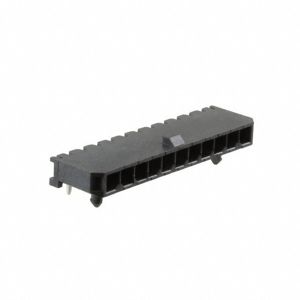

G88MPB11002C1EU
