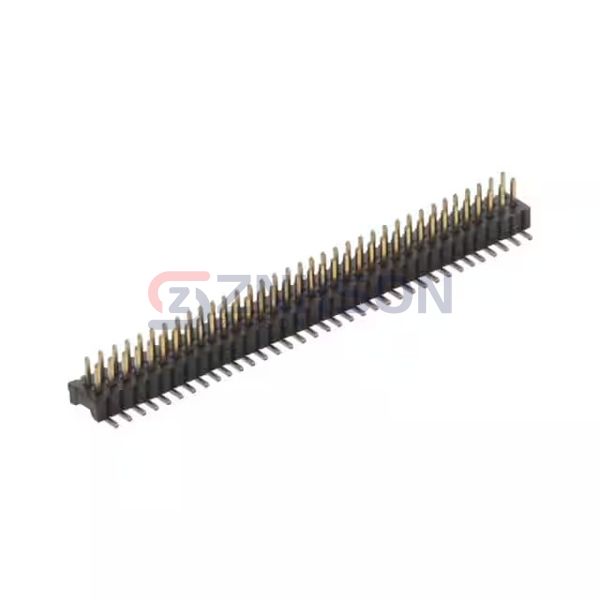

1MM-HU-D35-VS-00-F-TBP
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
SCL 1.0 HDR DRVT USP 070 SMT G1
$5.99
Available to order
Reference Price (USD)
1+
$5.99102
500+
$5.9311098
1000+
$5.8711996
1500+
$5.8112894
2000+
$5.7513792
2500+
$5.691469
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 1MM-HU-D35-VS-00-F-TBP rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 70
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.083" (2.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 30VAC
Related Products
Amphenol ICC (FCI)
95278-802-14LF
Preci-Dip
800-80-026-30-001101
Samtec Inc.
FTE-127-01-G-DV-A
Molex
90131-0950
Molex
0022286123
Samtec Inc.
TSM-103-02-L-SV-LC-TR
Samtec Inc.
TSM-125-03-L-DV-P

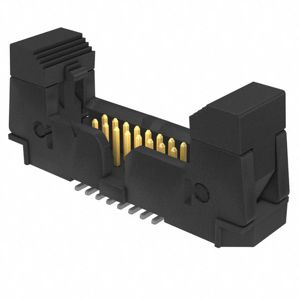

Samtec Inc.
EHF-108-01-S-D-SM

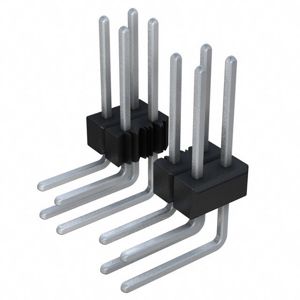

Sullins Connector Solutions
