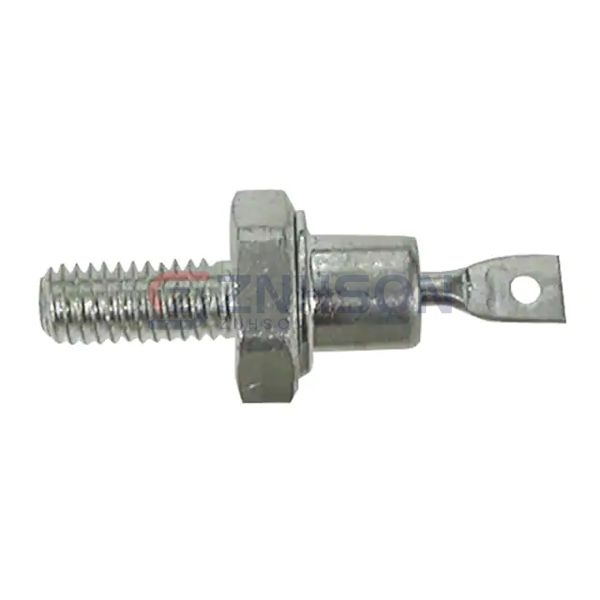

1N2972RB
Solid State Inc.
Solid State Inc.
DO4 10 WATT ZENER DIODES
$6.50
Available to order
Reference Price (USD)
100+
$25.50120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N2972RB by Solid State Inc. is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N2972RB is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 8.2 V
- Tolerance: ±5%
- Power - Max: 10 W
- Impedance (Max) (Zzt): 1.5 Ohms
- Current - Reverse Leakage @ Vr: 50 µA @ 6.2 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 2 A
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: DO-203AA, DO-4, Stud
- Supplier Device Package: DO-4
Related Products
Vishay General Semiconductor - Diodes Division
BZM55C16-TR
Microchip Technology
JANTXV1N3016C-1
Microchip Technology
JAN1N5524C-1/TR
Renesas Electronics America Inc
RD8.2JS-T1-AZ
Vishay General Semiconductor - Diodes Division
MMSZ5252B-HE3-18
Microchip Technology

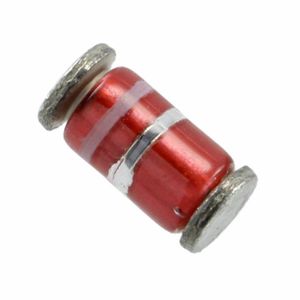

CDLL3025A
Central Semiconductor Corp

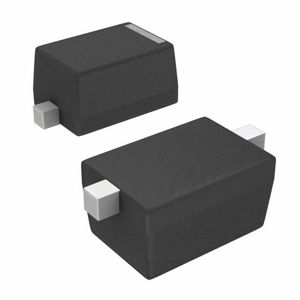

CMOZ4L3 TR PBFREE
Nexperia USA Inc.

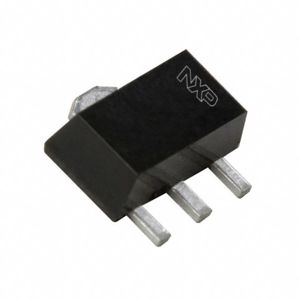

BZV49-C68,115
