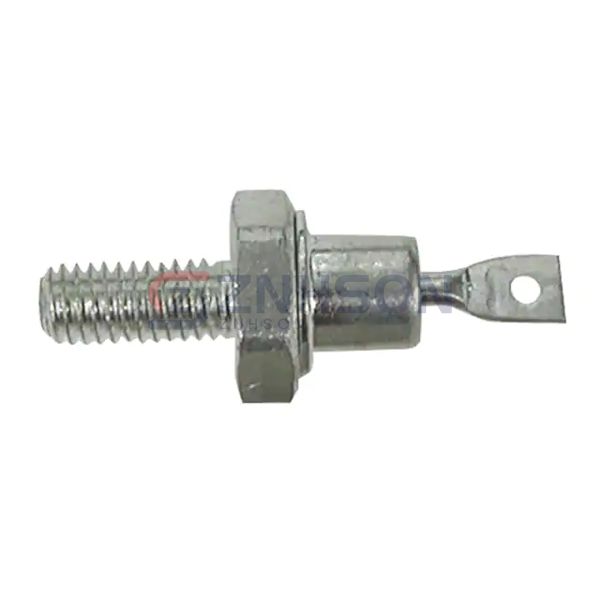

1N3015RA
Solid State Inc.
Solid State Inc.
DO4 10 WATT ZENER DIODES
$6.50
Available to order
Reference Price (USD)
1+
$6.50000
500+
$6.435
1000+
$6.37
1500+
$6.305
2000+
$6.24
2500+
$6.175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N3015RA by Solid State Inc. is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N3015RA is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 200 V
- Tolerance: ±10%
- Power - Max: 10 W
- Impedance (Max) (Zzt): 300 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 144 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 2 A
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: DO-203AA, DO-4, Stud
- Supplier Device Package: DO-4
