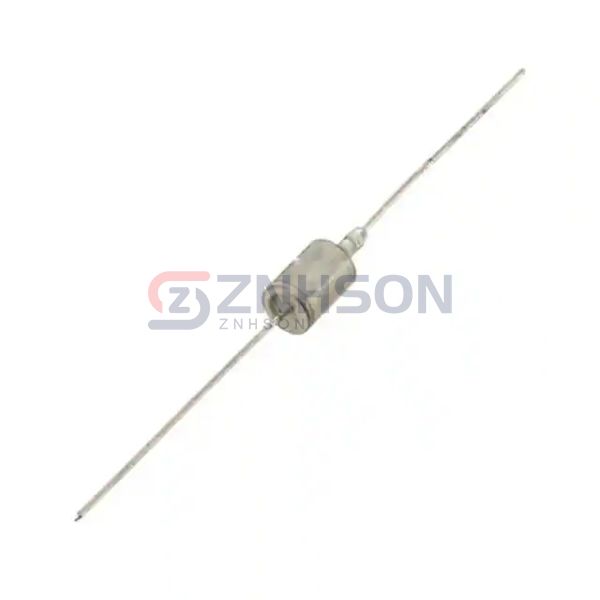

1N3023B
Solid State Inc.
Solid State Inc.
1 WATT ZENER DIODE D0-13
$5.93
Available to order
Reference Price (USD)
1+
$5.93300
500+
$5.87367
1000+
$5.81434
1500+
$5.75501
2000+
$5.69568
2500+
$5.63635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N3023B from Solid State Inc. is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1N3023B is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 13 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 10 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 9.9 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-13
- Supplier Device Package: DO-13
