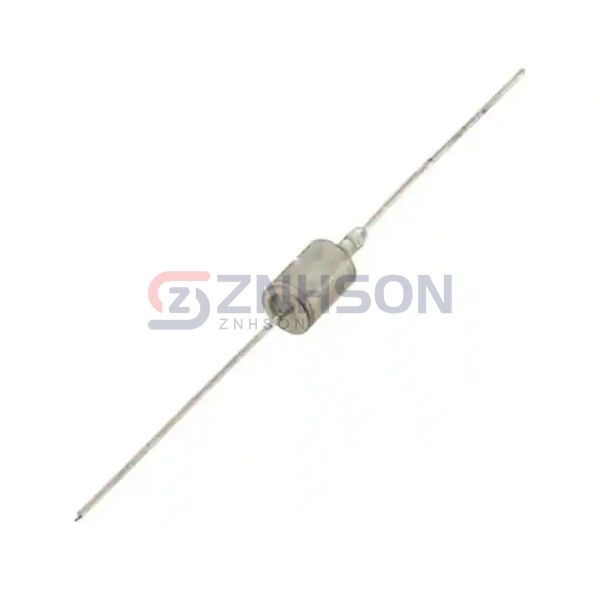

1N3029B
Solid State Inc.
Solid State Inc.
1 WATT ZENER DIODE D0-13
$5.93
Available to order
Reference Price (USD)
1+
$5.93300
500+
$5.87367
1000+
$5.81434
1500+
$5.75501
2000+
$5.69568
2500+
$5.63635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N3029B by Solid State Inc. is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N3029B is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 24 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 25 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 18.2 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-13
- Supplier Device Package: DO-13
