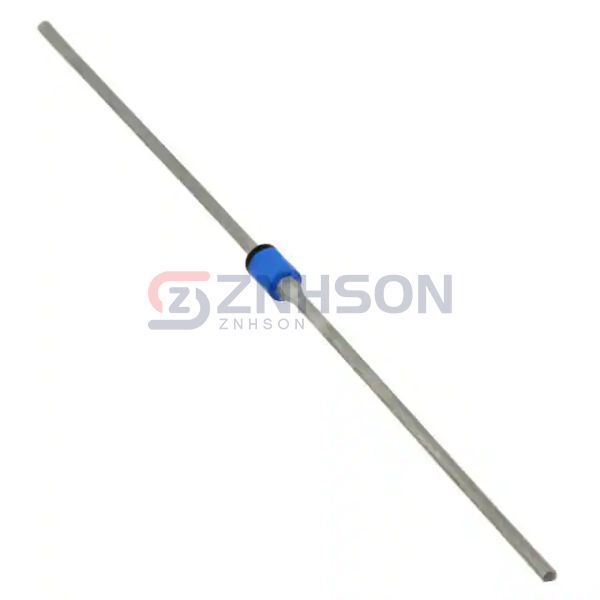

1N3156/TR
Microchip Technology
Microchip Technology
DIODE ZENER TEMP COMPENSATED
$30.52
Available to order
Reference Price (USD)
1+
$30.52500
500+
$30.21975
1000+
$29.9145
1500+
$29.60925
2000+
$29.304
2500+
$28.99875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N3156/TR Zener diode from Microchip Technology is a reliable component in the Discrete Semiconductor Products category. This single Zener diode offers precise voltage regulation, with features like low noise and high surge current capability. It is ideal for applications in power management, such as in DC-DC converters and voltage regulators. The 1N3156/TR is also used in automotive electronics, protecting sensitive components from voltage transients. Additionally, it is found in industrial automation systems, where it ensures stable operation of PLCs and robotic controls. Its versatility makes it a valuable asset in both consumer and industrial electronics.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 8.4 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 15 Ohms
- Current - Reverse Leakage @ Vr: 10 µA @ 5.5 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: DO-204AA, DO-7, Axial
- Supplier Device Package: DO-7 (DO-204AA)
