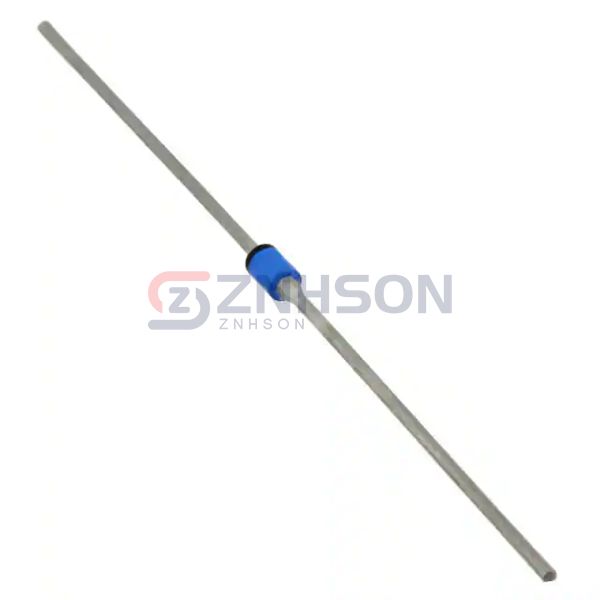

1N3157-1/TR
Microchip Technology
Microchip Technology
DIODE ZENER TEMP COMPENSATED
$45.92
Available to order
Reference Price (USD)
1+
$45.91500
500+
$45.45585
1000+
$44.9967
1500+
$44.53755
2000+
$44.0784
2500+
$43.61925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N3157-1/TR by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the 1N3157-1/TR is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 8.4 V
- Tolerance: ±1%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 15 Ohms
- Current - Reverse Leakage @ Vr: 10 µA @ 5.5 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: DO-204AA, DO-7, Axial
- Supplier Device Package: DO-7 (DO-204AA)
